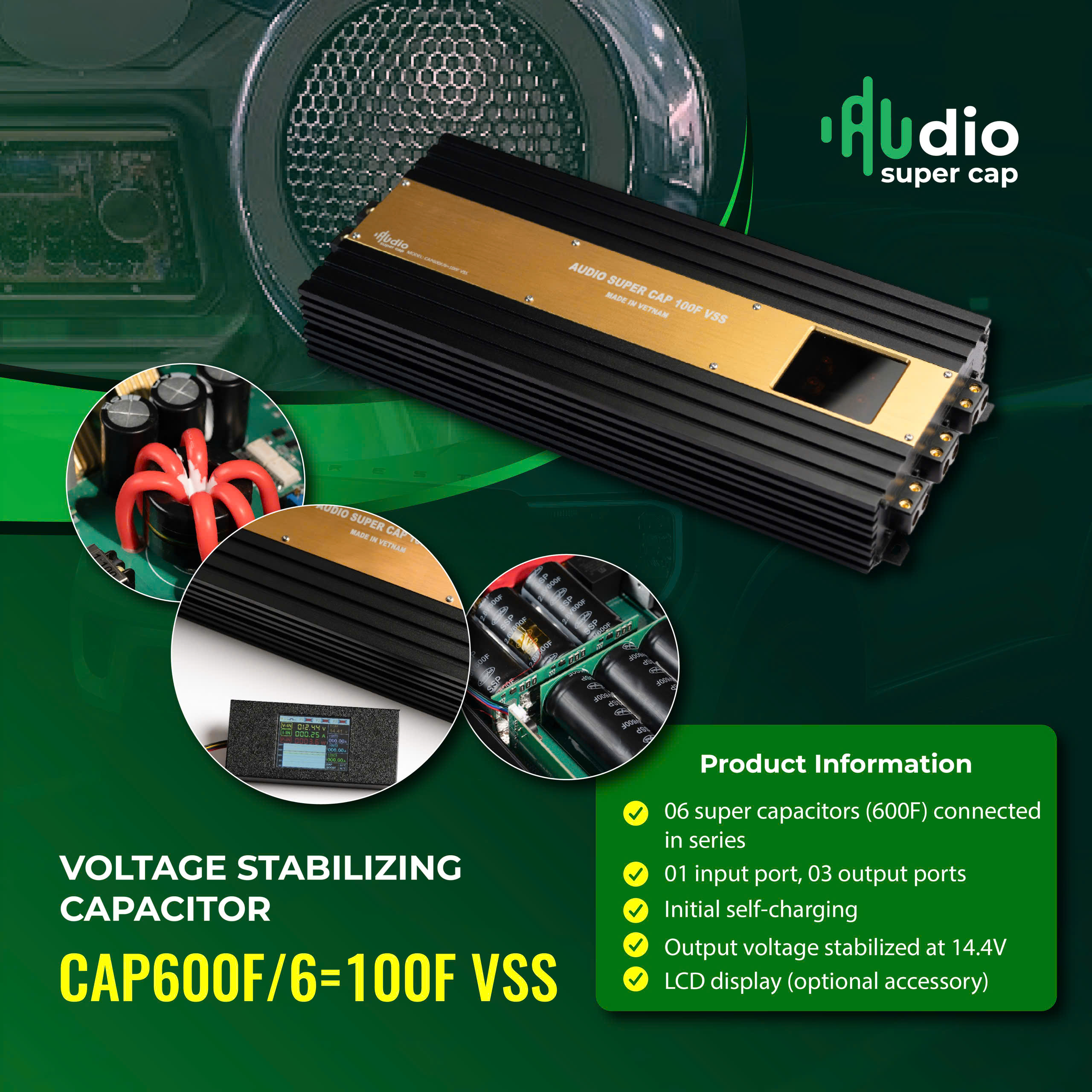

CAP600F/6=100F VSS – Super Capacitor With Voltage Stabilizing for Car Audio Systems

Product Introduction

When upgrading your car’s audio system, ensuring a stable and powerful power supply is the key factor that determines performance and sound quality. To meet this need, the CAP600F/6=100F VSS voltage stabilization supercapacitor was born – a specialized product for customized in-car audio systems, fully manufactured in Vietnam.

The product features a capacitance of up to 100F, providing a Effective output current at 100A and peak output current 400A in 500 millisecond or 5,760W (at 14.4V), delivering instant power compensation. This helps maintain stable voltage for high-power components like amplifiers and DSPs – the heart of any audio system. In fact, high-end audio equipment typically performs best at around 14.4V DC, but car voltage often fluctuates, especially during heavy bass hits, causing voltage drops that result in distortion and poor audio clarity.

The CAP600F/6=100F VSS (Voltage Step-up Stabilization) is the ideal solution to this issue. It stabilizes output voltage within a range of 12V to 14.8V, ensuring DSPs and amplifiers always operate at peak performance. As a result, the sound output remains clear, powerful, and precise – especially in the bass range, which consumes the most energy.

Key Features

1. Safety Feature – Reverse Discharge Protection

All capacitors and voltage stabilizing capacitors from Audio Super CAP include reverse discharge protection. As soon as the vehicle’s electrical system is shut off, the device immediately activates a safety mechanism to prevent residual electricity from discharging back into the car’s system. This feature ensures absolute safety when the system is not in use. It is particularly useful for electric vehicles with complex systems that sometimes require power disconnection to reset.
Without this feature, any capacitor will discharge stored energy back into the system when power is cut, leading to residual current and gradual drain. This is dangerous as it may cause insufficient power for the car’s ECUs (black boxes), potentially resulting in serious malfunctions or even damage.

2. World’s Only Intelligent Auto-Charging Technology

All Audio Super CAP products, including the CAP600F/6=100F VSS, are equipped with initial auto-charging – a unique and critical feature. This allows the device to automatically recharge each time the system is powered off, ensuring maximum safety for the car’s electrical system.

In cases where the battery is drained or a system reset is required (especially in modern EVs), restoring power without auto-charging can cause power surges, blowing fuses that can cost up to 10 million VND. The auto-charging function eliminates this risk, safeguarding the electrical system and minimizing damage.

3. 2-in-1 Functionality: Capacitor + Voltage Stabilizer

More than just a supercapacitor, the CAP600F/6=100F VSS also features built-in voltage stabilization, making it a pioneering 2-in-1 device exclusive to the Audio Super CAP brand. This eliminates the need to invest in two separate devices while still ensuring powerful, stable, and precise current for optimal audio system performance.

4. Modern LCD Touchscreen with Smart Alerts

The device includes a 2.4-inch LCD touchscreen, displaying all essential technical information such as:

• Input and output voltage

• Current intensity

• Total system power consumption

• Fuse status, including alerts for potential or actual fuse burnout

This feature allows users to monitor, manage, and promptly address any anomalies in the car’s audio or electrical systems.

5. Convenient Ports & Flexible System Control

The CAP600F/6=100F VSS is designed with 1 input port and 3 output ports, allowing efficient power distribution across multiple devices within the system. Additionally, the product includes 2 REM/ACC wires, enabling users to easily turn the entire audio system on/off with a simple remote control – convenient and time-saving.

Technical Specifications

What’s in the Box

When purchasing the CAP600F/6=100F VSS voltage stabilization supercapacitor, customers will receive:

• 01 fully assembled CAP600F/6=100F VSS unit

• Detailed user manual (printed and online video)

• Genuine warranty code (activated online)

• Protective packaging box for safe transport

• LCD display and cable (optional purchase if needed)

Looking for a specialized voltage stabilization solution for your car audio system?
Don’t miss the CAP600F/6=100F VSS from Audio Super CAP – a premium, technology-exclusive product with proven real-world performance.

Contact: +84 9 1134 1143
